HD LED Display KW94BX Series
Pitch Options
| 1.29mm | 1.579mm | 1.875mm | 2mm |
| 2.5mm | 3mm | 4mm |

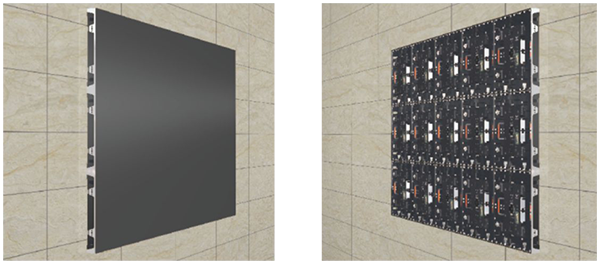

LED Video Wall
Traditional LED video wall has low grayscale and poor performance
KW94BX Series LED display screens are low brightness, high gray, gray level up to 24bit
| Specification | KW94B12 | KW94B15 | KW94B18 | KW94B20 | KW94B25 | KW94B30 |
KW94B40 |
| Pixel pitch(mm) | XY:1.29 | XY:1.579 | XY:1.875 | XY:2 | XY:2.5 | XY:3 | XY:4 |
| Pixel density(pixels/sqm) | 600,625 | 401,111 | 284,444 | 250,000 | 160,000 | 111,111 | 62,500 |
| Cabinet resolution | 744x372 | 608x304 | 512x256 | 480x240 | 384x192 | 320x160 | 240x120 |
| Lamp type | SMD1010 |
SMD1010/SMD1212 |
SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 |

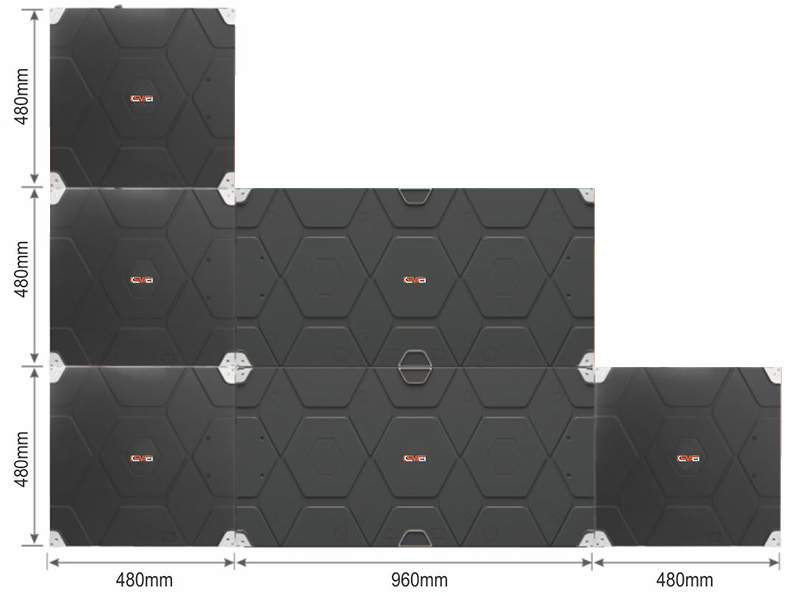

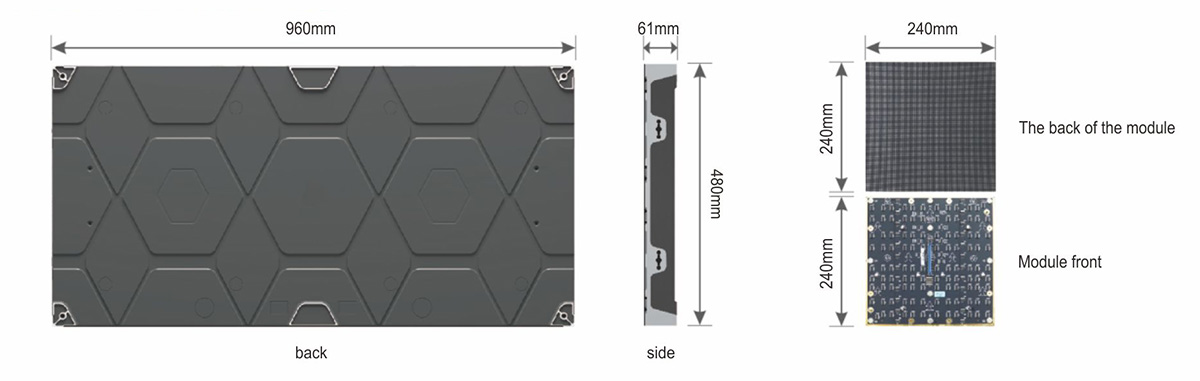

| Cabinet size(mm) | 960x480x61mm, Compatible with matching 480x480 unit cabinet | ||||||
| Display brightness(cd/m²) | 200~800CD/m² Optional | ||||||
| Gray scale(bit) | 10~14Bit adjustment | ||||||
| Pixel correction | Brightness and color adjustment | ||||||
| Color temperature | 2500K~10000K adjustment | ||||||
| Drive mode | Synchronization Control | ||||||
| Protection level | TOPCOB front Ip65, Rear IP63 | ||||||
| Type of driver | Constant current driver (Compatible) | ||||||
| Frame frequency | 60Hz、120Hz(3D) | ||||||
| Refresh rate | Normal:≤1920Hz、Max:≤3840Hz | ||||||
| Working voltage | Wide(AC:100V~240V,50~60Hz) Or Narrow (AC:200V~240V,50~60Hz) Optional | ||||||
| Average voltage | 100w/m²~300w/m² | ||||||
| Peak power | ≤500w/m² | ||||||
| LED lifetime(hrs) | 100,000hrs | ||||||
| Operating temperature range(℃) | -10℃~+40℃ | ||||||
| Storage temperature range(℃) | -25℃~+60℃ | ||||||
| Operating environment humidity | 10%~90%RH, No condensation | ||||||
| Weight(kg/cabinet) | 11kg | ||||||
Indoor P1.8 LED Display
Project Name：Indoor P1.8 LED Display
Project Address：Shenzhen, China
Specification：Pixel Pitch P1.8
Area：35 square meter
Time for completion：Jun.2023
This project was constructed at the well-known Hunan cuisine brand Ye Hunan's Nanshan store in Shenzhen. It successfully created a high-end indoor P1.8 ultra-high-definition LED display screen and was officially put into use in June 2023, injecting new digital vitality into its dining space.
This screen adopts the precise P1.8 micro-pitch pixel technology, achieving seamless splicing of ultra-high-definition picture quality. The details are presented in every thread, and the color reproduction is true and rich. It features excellent characteristics of high refresh rate and low brightness with high gray scale. The dynamic images are smooth without ghosting, ensuring visual comfort even after prolonged viewing. It perfectly meets the strict requirements for display quality in high-end dining environments.
This screen has become the core carrier for brand promotion of the Wild South Nanshan Store. By dynamically playing creative dish videos, live-streaming in the kitchen and cultural promotional videos, it has greatly attracted customers' attention, effectively stimulated diners' desire to order, enhanced the brand's high-end image and technological sense, significantly improved the customer experience and marketing effect, and become a powerful tool for it to stand out in the fierce catering market.
Outdoor P3 LED Display
roject Name：Outdoor P3 LED Display
Project Address：Mixc, Shenzhen, China
Specification：Pixel Pitch P3
Area：18 square meter
Time for completion：Jul.2023
This project is located in Nanshan Mixc, Shenzhen. Since its completion in July 2023, it has become a visual focus of the business district.
This display screen adopts advanced P3 pixel pitch technology, featuring high density and high definition. The picture display is detailed and realistic, with saturated and vivid colors. With high brightness (≥6000cd/m²) and wide viewing Angle features, it ensures a highly impactful visual experience even in strong sunlight. The product reaches the IP65 high-standard protection level, featuring excellent waterproof, dustproof and anti-corrosion performance. It can easily cope with various harsh outdoor weather conditions and ensure long-term stable operation.
The establishment of this screen has significantly enhanced the commercial image and advertising value of Nanshan MixC. Its all-weather, high-definition dynamic visual display not only effectively attracts foot traffic but also serves as an excellent medium for brands to launch new products and hold events, infusing the shopping mall with a strong atmosphere of fashion and technology and strengthening its leading position as a high-end commercial landmark.
Indoor P2.5 LED Display
Project Name：Indoor P2.5 LED Display
Project Address：Shenzhen, China
Specification：Pixel Pitch P2.5
Display Size：5.12x2.56m
Display Resolution：2048x1024 pixel
Time for completion：Mar.2025
This project is located in the Jiuji Fishing Port Restaurant in Luohu District, Shenzhen City, Guangdong Province. It features a brand-new high-end indoor P2.5 full-color LED display screen. The screen size is 5.12 meters by 2.56 meters, aiming to empower this well-known catering brand with a brand-new digital promotional experience.
This screen adopts a precise P2.5 pixel pitch, achieving a high-definition, visually seamless and stunning display effect. It features high brightness, high contrast and wide viewing Angle, with true and rich color reproduction. Whether it is playing enticing dish videos, presenting celebration banquet information or conducting real-time kitchen live broadcasts, it can all come alive vividly, greatly attracting diners' attention and stimulating their appetite.
This display screen will become a powerful tool for Jiuji Fishing Port to enhance its brand image and innovate its marketing model. Through dynamic and digital content display, not only can the sales of characteristic dishes be effectively promoted and a lively dining atmosphere be created, but also promotional activities can be played in a rolling manner, significantly enhancing the brand's influence and competitiveness in the local market, and injecting new technological vitality into the traditional catering industry.
Outdoor Pixel Pitch P3 LED display screen
Project Name：Outdoor Pixel Pitch P3 LED display screen
Project Address： Malawangzi, Yueyang, Hunan, China
Specification：P3
Display Size：7.04x4m
Display Resolution：2288x1300 pixel
Time for completion：Dec.2024
This project is located at the headquarters of Malatwangzi in Yueyang, Hunan Province, and aims to create a brand-new high-quality outdoor P3 full-color LED display screen. The screen measures 7.04 meters by 4 meters, is grand and eye-catching, and was completed and unveiled in December 2024, becoming a powerful showcase for the corporate brand image.
The display screen adopts advanced P3 pixel pitch technology, featuring high density and high definition. The picture display is detailed and realistic, with saturated and vivid colors. With high brightness and wide viewing Angle features, it ensures a highly impactful visual experience even from a distance under different weather and lighting conditions. The product has excellent outdoor adaptability, with high levels of water, dust and corrosion resistance, and can stably cope with all kinds of harsh weather conditions. Its outstanding stability and durability perfectly meet the 7x24-hour continuous display requirements of enterprise headquarters, strongly empowering brand promotion and corporate culture display, and becoming a remarkable technological landscape.
Indoor GOB-P1.53 LED Display Screen
Project Name：Indoor GOB-P1.53 LED Display Screen
Project Address：International Finance Centre，IFC, Hongkong, China
Specification：GOB-P1.53
Display Size：4.16x2.4 meters
Display Resolution：2704x1560dot
Time for completion：Sep.2025
The conference room of the Hong Kong International Finance Centre adopts the leading P1.53GOB small-pitch LED display solution to create a 4.16× 2.4-meter ultra-high-definition integrated screen, which is scheduled to be officially put into use in September 2025.
This screen achieves seamless visual effects with micro-pitch pixels and, in combination with GOB packaging technology, significantly enhances its protective performance, effectively preventing collisions, dust, and glare. It meets the strict requirements for display stability and comfort in financial-grade long-duration meetings. With high refresh rate and wide color gamut performance, the picture is smooth and delicate, with precise and rich colors, ensuring the clear presentation of data charts and dynamic content. The overall design takes into account both aesthetics and practicality. With its ultra-thin and silent features, it integrates into high-end conference scenarios, providing reliable and professional visual support for international financial decision-making.
GOB-P1.53 School Meeting Room LED Display
Project Name：GOB-P1.53 School Meeting Room LED Display
Project Address：A prestigious school in Guangzhou, China
Specification：P1.53
Display Size：4.48x2.08meter
Display Resolution：2912x1352pixel
Time for completion：May.2025
This project is located in the conference room of a certain noble school in Guangzhou, Guangdong Province, meticulously crafting a high-end indoor GOB small-pitch LED display screen. The screen size is 4.48 meters by 2.08 meters. The project is scheduled to be completed in May 2025, providing an outstanding display platform for the school's academic reports and high-end conferences.
This screen adopts the advanced GOB (Glue on Board) packaging technology. By coating a special optical gel on the surface of the LED, it achieves ultra-high reliability and has the advantages of moisture-proof, dust-proof, impact-proof and anti-static, greatly enhancing the durability and stability of the screen. Its small-pitch feature brings seamless splicing, ultra-high resolution and fine picture quality, with rich and true color expression. Meanwhile, the matte surface treatment effectively supposes glare, making it less tiring to watch for a long time. It perfectly meets the strict requirements of the meeting room for display effect and comfort, facilitating efficient communication and intelligent teaching.
